Compare standard, rectangular, mini-mesh and heavy-duty FRP grating options by mesh, height, panel dimensions, open area and approximate weight. Final suitability must be verified against bearing span, expected load, resin, surface and site conditions.
For general selection criteria and applications, see the FRP grating selection and application guide.
Compare FRP Grating Sizes
These values describe the current standard product options. Final selection must be verified against span, load, surface, resin and site conditions.
| Product | Bar thickness (top/bottom) | Mesh | Open area | Approx. weight | Standard panel (mm) | Technical image | Quote |
|---|---|---|---|---|---|---|---|
| 38×38×h25 | 6.5 / 5 | 38×38 | 68% | ~12.5 kg/m² | 1225×3665 | Technical image | Request quote |
| 19×100×h25 | 11 / 9 | 19×100 | 62% | ~14.5 kg/m² | 1011×4001 | Technical image | Request quote |
| 38×38×h30 | 6.5 / 5 | 38×38 | 68% | ~14.5 kg/m² | 1225×3665; 997×4007; 1000×1000 | Technical image | Request quote |
| 19×19×h30 | 6.5 / 5 | 19×19 / 38×38 | 42% | ~18.5 kg/m² | 1000×4038 | Technical image | Request quote |
| 38×38×h38 | 6.5 / 5 | 38×38 | 68% | ~18.5 kg/m² | 1225×3665; 1000×4038 | Technical image | Request quote |
| 19×19×h38 | 6.5 / 5 | 19×19 / 38×38 | 44% | ~22.5 kg/m² | 997×4007 | Technical image | Request quote |
| 25×50×h38 | 11 / 9 | 25×50 | 48% | ~35.5 kg/m² | 1002×2094 | Technical image | Request quote |
| 38×38×h50 | 11 / 9 | 38×38 | 56% | ~39.5 kg/m² | 1037×2025 | Technical image | Request quote |
| 50×50×h50 | 8 / 6 | 50×50 | 72% | ~23.5 kg/m² | 998×2038 | Technical image | Request quote |
| 38×38×h60 | 11 / 8 | 38×38 | 74% | ~45.5 kg/m² | 999×2025 | Technical image | Request quote |
Send Your Dimensions and Site Conditions
Provide the panel dimensions, bearing span, expected load, surface and site conditions so the available product options can be evaluated against the project data.
38 x 38 x h25
Bar Thickness (top-bottom) 6,5 / 5
Mesh Size (mm) 38 x 38
Open Area % 68
Weight per m2 ~12,5 kg/m2
Standard Panel Size 1225 x 3665 mm
19 x 100 x h25
Bar Thickness (top-bottom) 11 / 9
Mesh Size (mm) 19 x 100
Open Area % 62
Weight per m2 ~14,5 kg/m2
Standard Panel Size 1011 x 4001 mm
38 x 38 x h30
Bar Thickness (top-bottom) 6,5 / 5
Mesh Size (mm) 38 x 38
Open Area % 68
Weight per m2 ~14,5 kg/m2
Standard Panel Size 1225 x 3665, 997 x 4007, 1000 x 1000 mm
19 x 19 x h30
Bar Thickness (top-bottom) 6,5 / 5
Mesh Size (mm) 19 x 19 / 38 x 38
Open Area % 42
Weight per m2 ~18,5 kg/m2
Standard Panel Size 1000 x 4038 mm
38 x 38 x h38
Bar Thickness (top-bottom) 6,5 / 5
Mesh Size (mm) 38 x 38
Open Area % 68
Weight per m2 ~18,5 kg/m2
Standard Panel Size 1225 x 3665, 1000 x 4038 mm
19 x 19 x h38
Bar Thickness (top-bottom) 6,5 / 5
Mesh Size (mm) 19 x 19 / 38 x 38
Open Area % 44
Weight per m2 ~22,5 kg/m2
Standard Panel Size 997 x 4007 mm
25 x 50 x h38
Bar Thickness (top-bottom) 11 / 9
Mesh Size (mm) 25 x 50
Open Area % 48
Weight per m2 ~35,5 kg/m2
Standard Panel Size 1002 x 2094 mm
38 x 38 x h50
Bar Thickness (top-bottom) 11 / 9
Mesh Size (mm) 38 x 38
Open Area % 56
Weight per m2 ~39,5 kg/m2
Standard Panel Size 1037 x 2025 mm
50 x 50 x h50
Bar Thickness (top-bottom) 8 / 6
Mesh Size (mm) 50x50
Open Area % 72
Weight per m2 ~23,5 kg/m2
Standard Panel Size 998 x 2038 mm

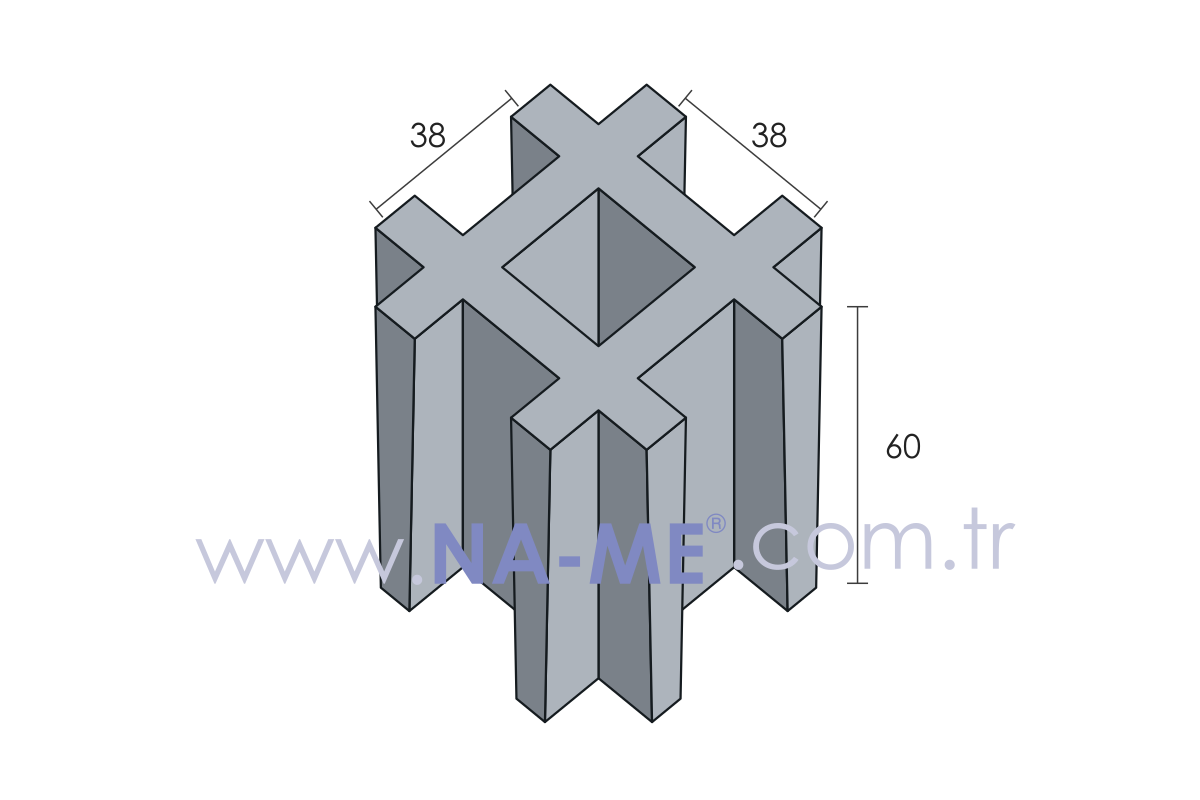

38 x 38 x h60
Bar Thickness (top-bottom) 11 / 8
Mesh Size (mm) 38x38
Open Area % 74
Weight per m2 ~45,5 kg/m2
Standard Panel Size 999 x 2025 mm
Moulded FRP Grating
NA-ME Co. Inc. can be produced any type of FRP gratings according to custom requirements for more than 2000 m2 demands.
