Polymer concrete channels are modular trough- or trench-shaped bodies forming a drainage line, suitable for indoor and outdoor environments. Combined with FRP grating, they provide a prefabricated system with rapid installation, coordinated function and a consistent visual finish. Selection is not based on channel width alone: the water or other liquid, flow rate, load, channel size, upper grating, surrounding site detail and maintenance plan must be considered together. The table below lists every A/B/C/D dimension in the 125–400 mm width series so that the body size can be reviewed before the seating, frame and grating details are technically verified.

System Construction and Performance

Polyester-resin and silica-sand composition

The polymer concrete body is manufactured with polyester resin and silica sand in place of cement. It is three times stronger than a conventional concrete channel and significantly lighter. Combining high strength with lower weight supports easier transport and site positioning.

Flow, resistance and rapid installation

The high-precision moulded, smooth internal surface improves water and waste flow, self-cleans and does not retain sediment. Suitable elements and a sloped design help long channels empty more quickly. Resistance to chemicals, freeze–thaw cycles, UV exposure and corrosion, together with the sealing approach, supports a durable drainage line. Fast moulded production and the modular/interlocking structure speed installation, removing site formwork and concrete labour. When coordinated with FRP grating, the result is a channel-and-grating system unaffected by corrosion.

Polymer Concrete Channel A/B/C/D Dimensions

All dimensions are in millimetres. A is the width series, B is the 1,000 mm channel length, C is the channel height and D is the wall dimension. Verify the final seating and upper-grating detail against the project.

Polymer concrete drainage channel with FRP grating
Polymer concrete channel A/B/C/D dimensions
A (mm)B (mm)C (mm)D (mm)
1251,0008025
1251,00010025
1251,00015025
1251,00020025
2001,0006030
2001,0008030
2001,00012030
2001,00015030
2001,00020030
2001,00025040
2001,00030040
2001,00040040
2501,0008045
2501,00012045
2501,00020045
3001,0008050
3001,00011050
3001,00015050
3001,00020050
3001,00025050
4001,00020050
4001,00030050
4001,00040050

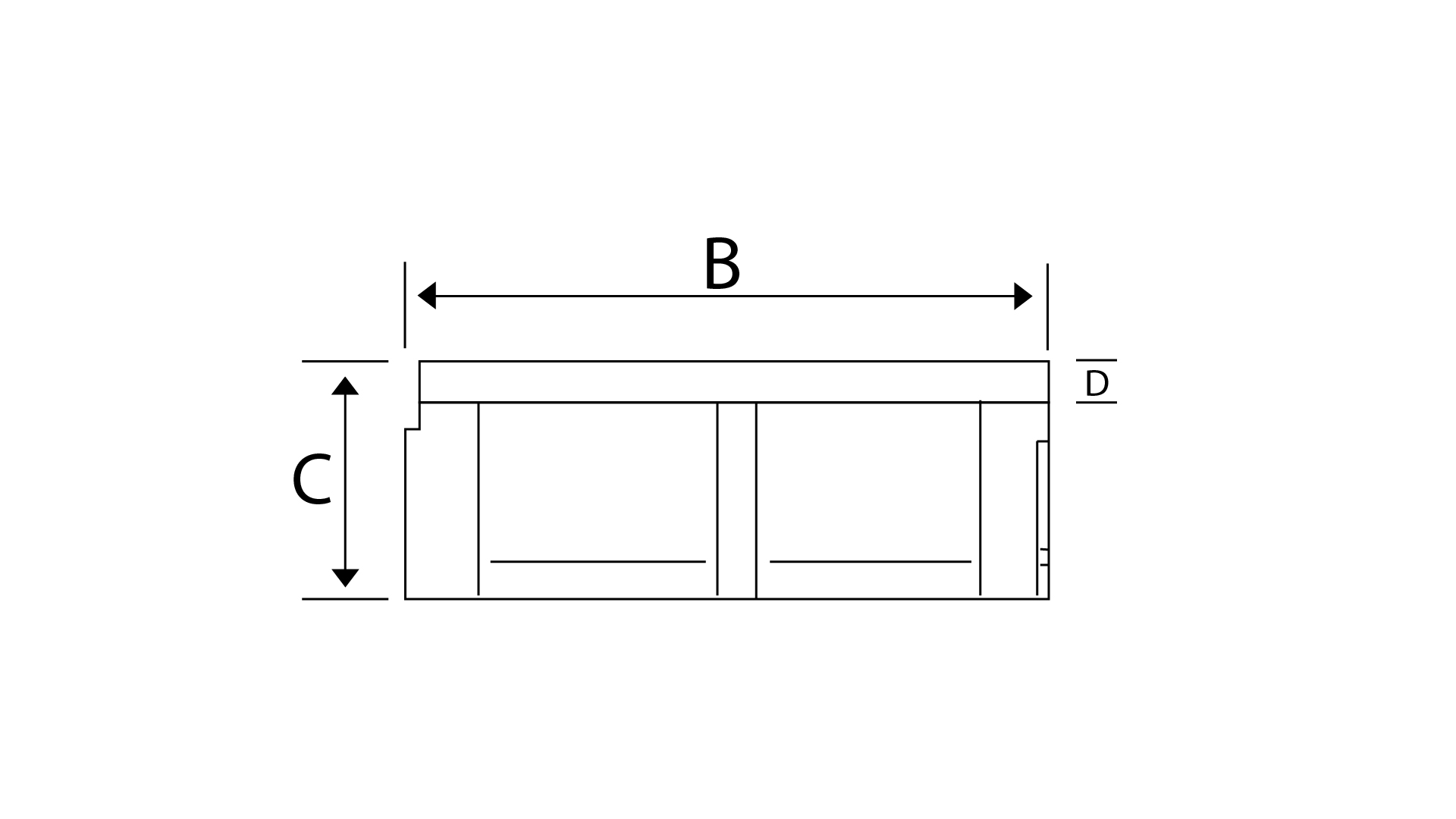

Polymer concrete channel A B C D dimension drawing

Supplementary Schematic of the Channel System

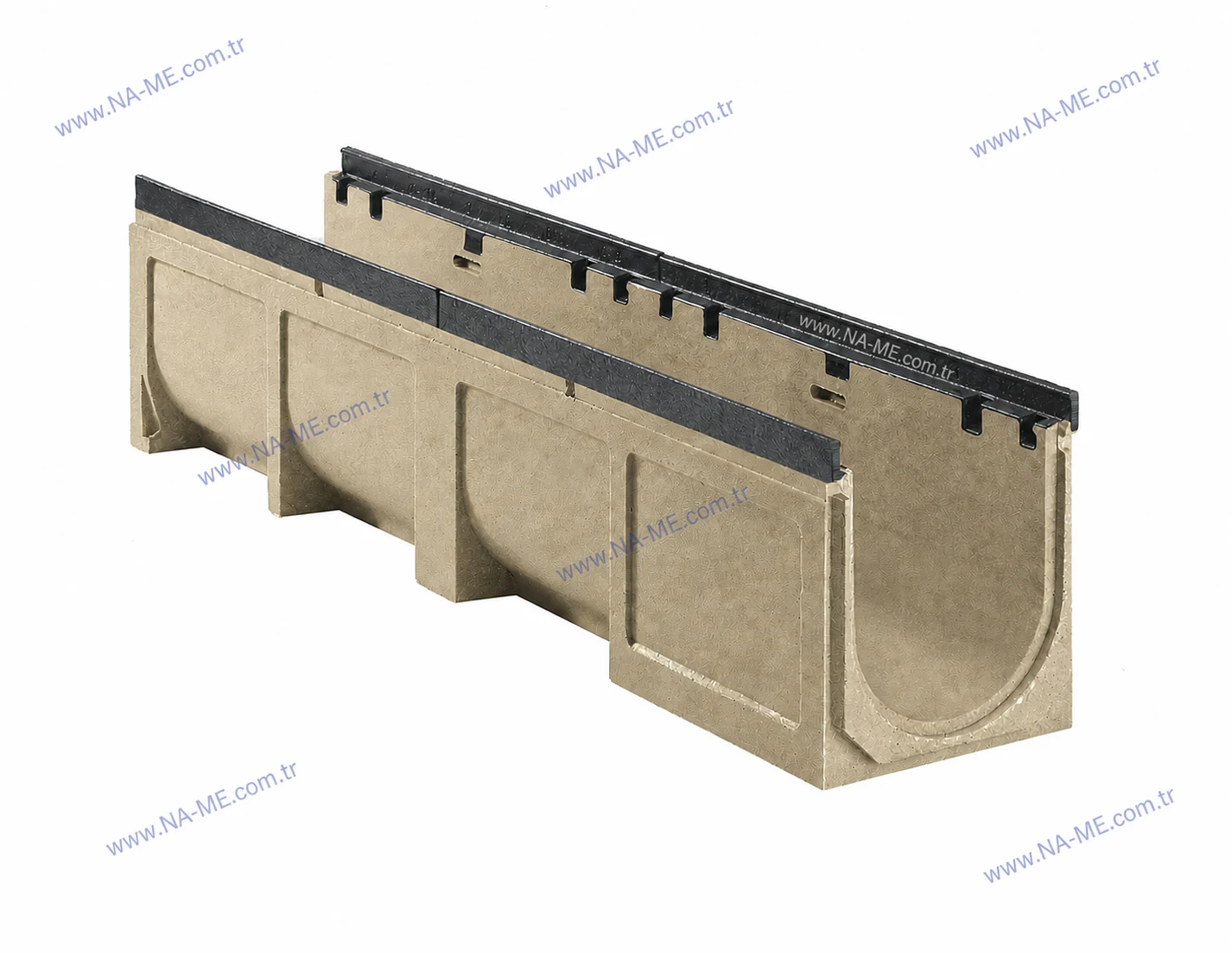

Schematic product view of a polymer concrete channel body and FRP upper grating
Schematic illustration of the channel body and upper grating used together; use the table and project data for dimensions and technical selection.

How to Coordinate the Channel and Upper Grating

Project inputs for channel and upper-grating selection
Project inputEffect on selection
Load and trafficRequires the channel body, seating detail and upper grating to be verified as one system
Conveyed liquidWater, wastewater, chemicals or waste flow affects material and sealing decisions
Flow rate and channel widthGuides review of the A and C dimensions against the collected or conveyed flow
Upper gratingFRP, cast or stainless grating must match the seating surface and frame
Surroundings and maintenanceRoad/pedestrian elevation, unobstructed site arrangement, slope and maintenance plan are coordinated

Selecting channel width only from flow and the grating only from load can produce a seating mismatch or an incorrect load class. In NA-ME Endüstri polymer concrete channel systems supplied with FRP grating, the seating surface and frame detail are matched at the factory.

A Concise View of Drainage Uses

Polymer concrete channels remove surface water, wastewater and chemical or waste spills quickly, contain them where required, and can carry utility lines. Single or multiple secondary lines, single/double slots and square/round holes are considered for streets, parking areas, airports, buildings, factories, treatment and waste facilities, chemical sites and commercial areas. See FRP grating drainage, manhole and channel applications for the detailed site-use narrative.

A Concise View of Channel-Top Grating Selection

The upper grating may be FRP, cast or stainless. For FRP, slip-resistant and insulating construction, cost-effectiveness and project-specified flame-retardant options can be reviewed; a finer mesh suits pedestrian areas, while a deeper panel is used for vehicle traffic. Review channel-to-grating coordination and stormwater-grating decisions on the existing composite channel and stormwater grating specialist page (Turkish). No English counterpart is currently published, so the destination language is stated explicitly.

Verify the Channel System from Project Data

Share the load and traffic, water or other conveyed liquid, design flow rate, channel width and height, line length, upper-grating preference, site elevation and surrounding detail. The NA-ME Endüstri technical team will review the channel body and upper grating together.
